WV 8000 D Stock machine

WV 8000 D – The vertical 5-axis machining centre for large aluminium structural components

Take advantage of this rare opportunity to integrate a WV 8000 into your production without long lead times. This new machine, available immediately, combines maximum agility, precision and productivity for machining large aluminium structural components – and can be put into operation at short notice.

The WV 8000 D has been consistently designed for the economic machining of large aluminium structural components. Its self-supporting, vibration-damping machine structure provides the basis for maximum precision, agility and process reliability. Large travel ranges, lightweight moving masses and directly driven rotary axes enable short machining times and high productivity.
At the same time, easy accessibility from two sides, optimum chip flow and the option of manual or automatic loading and unloading provide ideal conditions for modern production environments. Complemented by fast tool change via pick-up and the machine’s compact design, the WV 8000 combines maximum performance with high economic efficiency.

Start your enquiry now!

WV 8000 – Technical data

Working area

X axis	1500 mm
Y axis	1250 mm
Z axis	880 mm

Envelope circle

A axis	1800 mm
C axis	1650 mm

Feed rate

Rapid traverse
X, Y, Z axis	100 m/min
Axis acceleration
X axis	8 m/s²
Y, Z axis	10 m/s²
Jerk
X, Y axis	100 m/s³
Z axis	150 m/s³

Table load

Max. weight

350 kg

Work spindle

Spindle taper	HSK 100
Speed range	10000 min^-1
Power S6/40% ED	40 kW
Maximum torque	175 Nm

Tool magazine

Places	36
Length	700 mm
Max. Ø (without space free)	120 mm
Max. Ø (adjacent space free)	200 mm
Max. tool weight	20 kg
Load capacity	200 kg
Tool change time	3 s

Travel ranges of 1,500 mm (X), 1,250 mm (Y) and 880 mm (Z) provide optimum conditions for machining large aluminium structural components.
The powerful work spindle with HSK 100 interface, speeds of up to 10,000 rpm, an output of 40 kW and torque of 175 Nm delivers maximum precision and machining performance.

The strengths of the WV 8000 D

Two spindles and two autonomous machining chambers
High agility thanks to lightweight moving masses
Large machining areas for aluminium structural components
Directly driven rotary axes for maximum precision
Vibration-damping machine structure with Hydropol®
Compact design with a large working area

Machining from two sides for optimum accessibility
Optimised free chip fall
Tool change via pick-up for short non-productive times
Suitable for manual or automatic loading
Scalable automation concepts for growing production requirements
High process reliability and economic efficiency

The tool magazine with 36 tool positions and fast tool change via pick-up reduces non-productive times and ensures maximum productivity.
The particularly wide chip conveyor ensures reliable chip removal – even with high material removal volumes.

WV 8000 D Applications

Which applications is the WV 8000 D the right choice for?

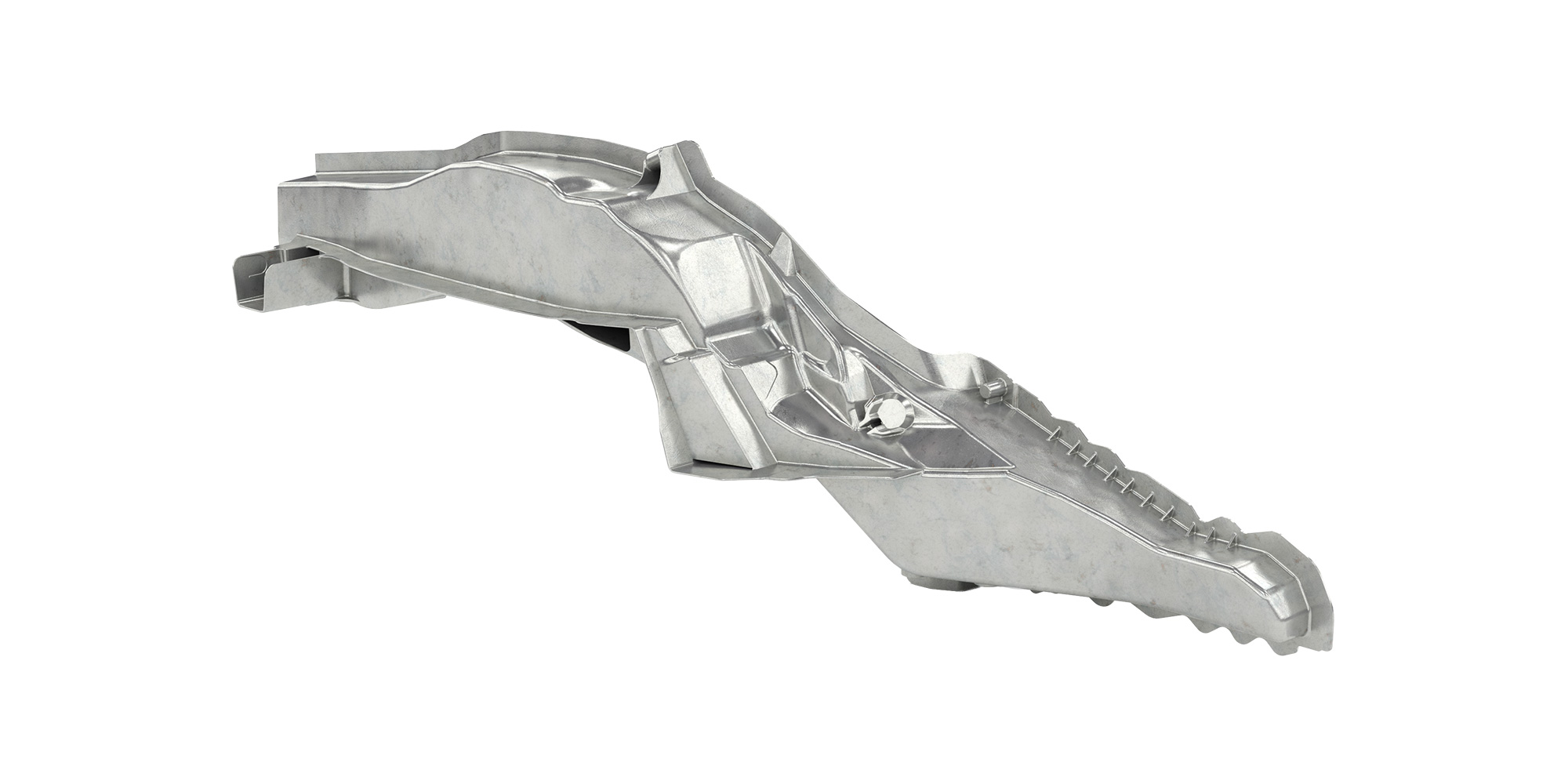

Automotive structural components

Machining large aluminium structural components for vehicle bodies, chassis and crash management systems – with maximum precision and short cycle times.

Lightweight aluminium construction

Perfect for complex aluminium components with demanding requirements for surface quality, dimensional accuracy and process reliability.

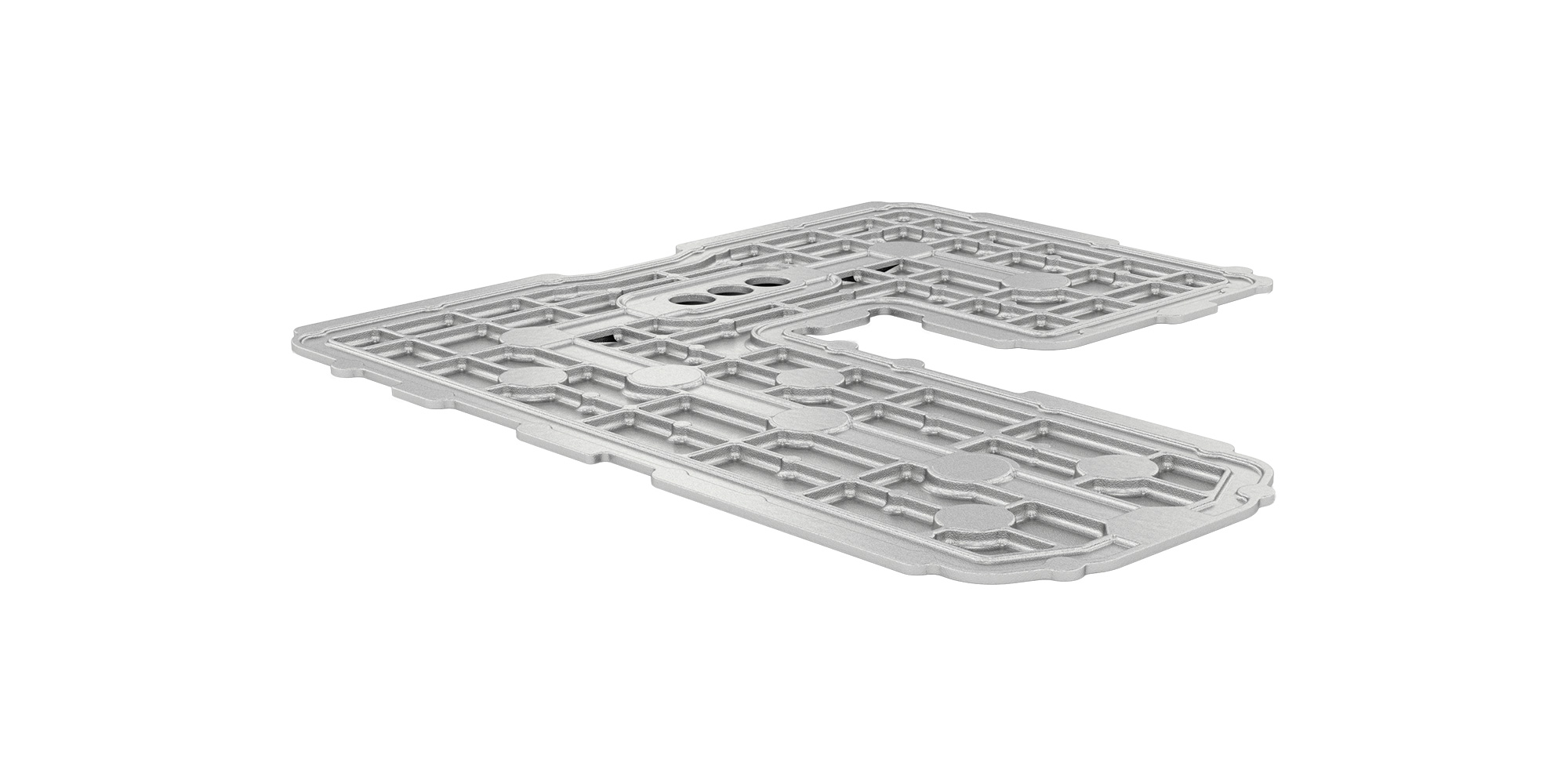

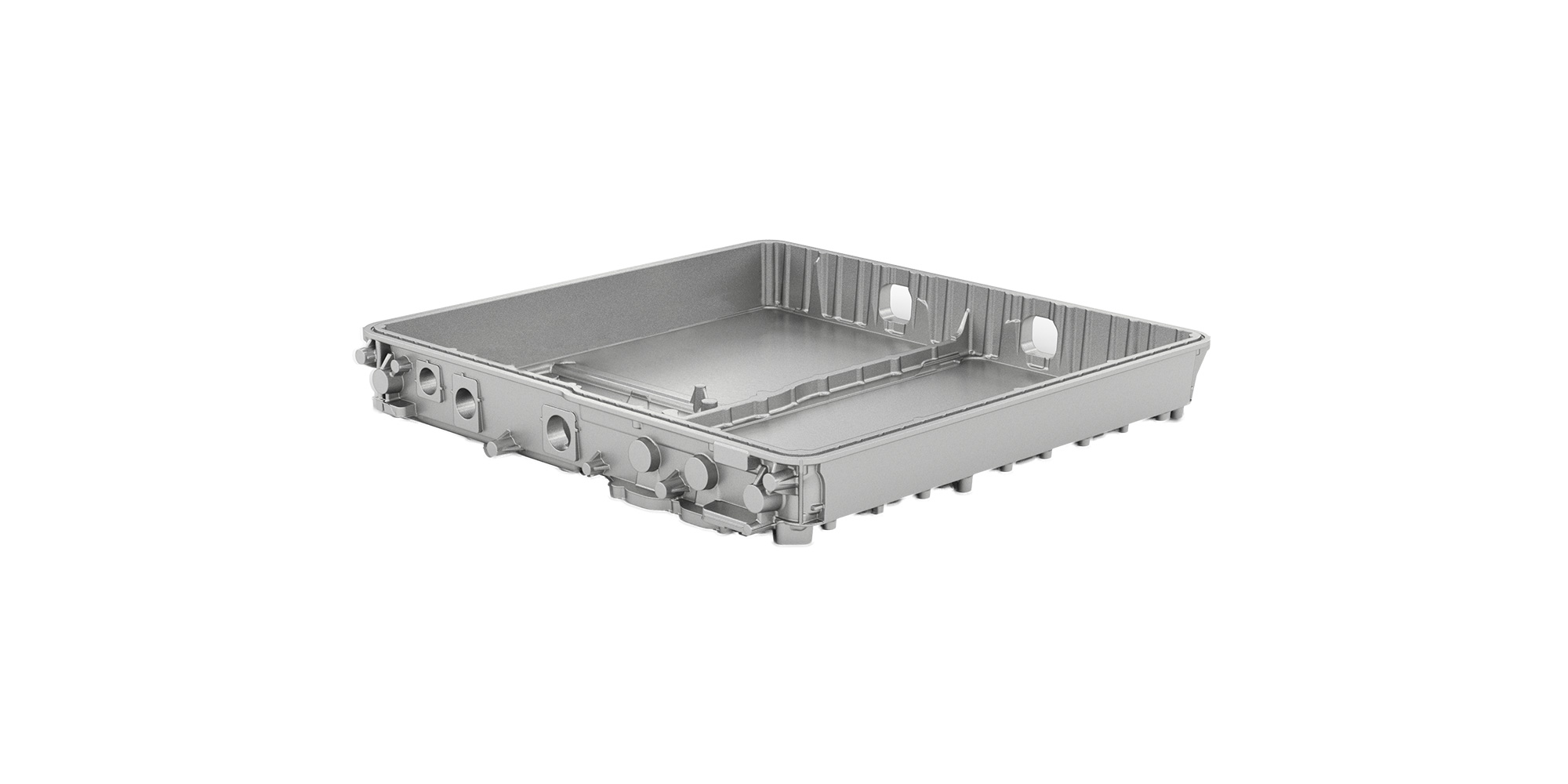

Battery housings and e-mobility

Ideal for battery housings, battery trays and other components for modern electric vehicles. High agility and large machining areas enable economic series production.

Cross-industry lightweight applications

Ideal for machining large aluminium structural components in mechanical engineering, railway vehicle manufacturing, aerospace and other industries with the highest demands for precision and productivity.

WV 8000 D Machine Video

Take advantage of this opportunity and secure a WV 8000 D that is available immediately, direct from stock. We would be pleased to present the machine to you in person at August Wenzler Maschinenbau GmbH and provide comprehensive advice on its potential applications. The machine can, of course, be individually adapted to your production requirements before delivery and equipped with suitable equipment and automation solutions.
